Equilibrium phase 1 2 3
2

diagram

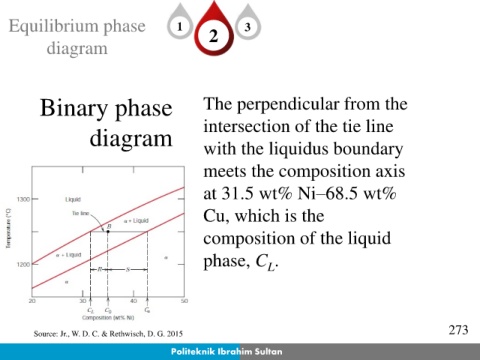

Binary phase The perpendicular from the

diagram intersection of the tie line

with the liquidus boundary

meets the composition axis

at 31.5 wt% Ni–68.5 wt%

Cu, which is the

composition of the liquid

phase, C .
L

273
Source: Jr., W. D. C. & Rethwisch, D. G. 2015
