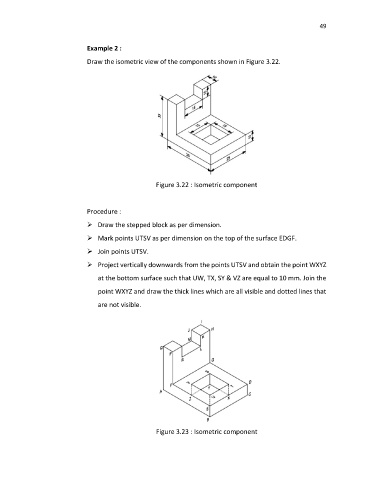

Example 2 :
Draw the isometric view of the components shown in Figure 3.22.
Figure 3.22 : Isometric component
Procedure :
➢ Draw the stepped block as per dimension.
➢ Mark points UTSV as per dimension on the top of the surface EDGF.
➢ Join points UTSV.
➢ Project vertically downwards from the points UTSV and obtain the point WXYZ
at the bottom surface such that UW, TX, SY & VZ are equal to 10 mm. Join the
point WXYZ and draw the thick lines which are all visible and dotted lines that
are not visible.
Figure 3.23 : Isometric component
