8

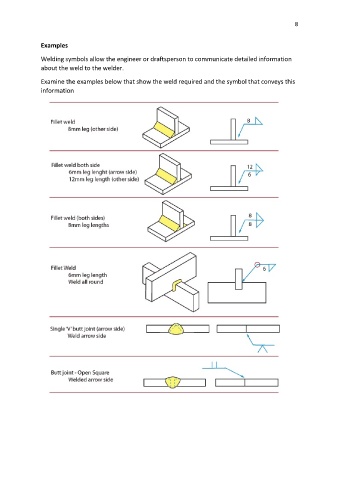

               Examples

               Welding symbols allow the engineer or draftsperson to communicate detailed information
               about the weld to the welder.

               Examine the examples below that show the weld required and the symbol that conveys this
               information
