CHAPTER 2: FLUID APPLICATION
Answer:
(-1.579kN/m2)

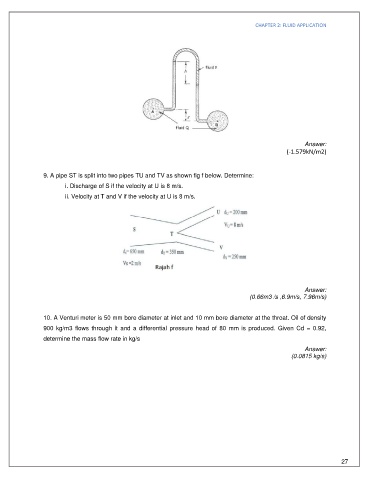

9. A pipe ST is split into two pipes TU and TV as shown fig f below. Determine:
i. Discharge of S if the velocity at U is 8 m/s.
ii. Velocity at T and V if the velocity at U is 8 m/s.
Answer:
(0.66m3 /s ,6.9m/s, 7.96m/s)
10. A Venturi meter is 50 mm bore diameter at inlet and 10 mm bore diameter at the throat. Oil of density
900 kg/m3 flows through it and a differential pressure head of 80 mm is produced. Given Cd = 0.92,
determine the mass flow rate in kg/s
Answer:
(0.0815 kg/s)
27
