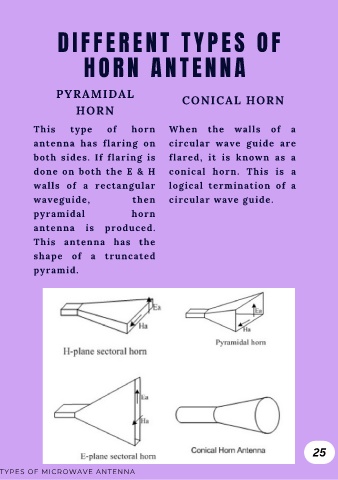

DI FFERENT TYPES OF

HORN ANTENNA

PYRAMIDAL CONICAL HORN

HORN

This type of horn When the walls of a

antenna has flaring on circular wave guide are

both sides. If flaring is flared, it is known as a

done on both the E & H conical horn. This is a
walls of a rectangular logical termination of a

waveguide, then circular wave guide.

pyramidal horn

antenna is produced.

This antenna has the

shape of a truncated

pyramid.

25

TYPES OF MICROWAVE ANTENNA
