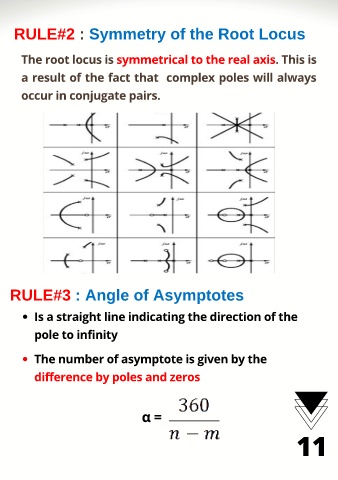

RULE#2 : Symmetry of the Root Locus

The root locus is symmetrical to the real axis. This is

a result of the fact that complex poles will always

occur in conjugate pairs.

RULE#3 : Angle of Asymptotes

Is a straight line indicating the direction of the

pole to infinity

The number of asymptote is given by the

difference by poles and zeros

α =
