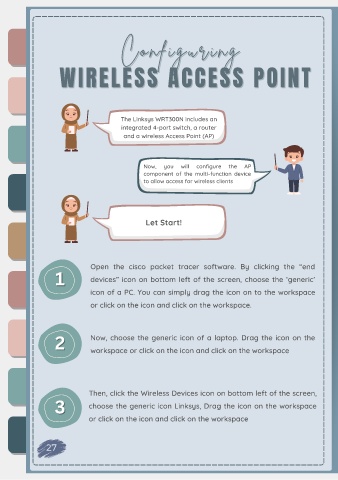

Configuring ng
Configuri

WIRELESS ACCESS POIN
WIRELESS ACCESS POINT T

The Linksys WRT300N includes an
integrated 4-port switch, a router
and a wireless Access Point (AP)

Now, you will configure the AP
component of the multi-function device
to allow access for wireless clients

Let Start!

Open the cisco packet tracer software. By clicking the “end
1 1 devices” icon on bottom left of the screen, choose the ‘generic’

icon of a PC. You can simply drag the icon on to the workspace

or click on the icon and click on the workspace.

2 2 Now, choose the generic icon of a laptop. Drag the icon on the

workspace or click on the icon and click on the workspace

Then, click the Wireless Devices icon on bottom left of the screen,
3 3 choose the generic icon Linksys, Drag the icon on the workspace

or click on the icon and click on the workspace
