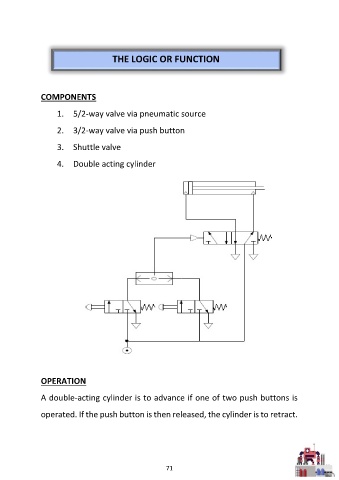

THE LOGIC OR FUNCTION





               COMPONENTS


                     1.  5/2-way valve via pneumatic source


                     2.  3/2-way valve via push button

                     3.  Shuttle valve


                     4.  Double acting cylinder


































               OPERATION

               A double-acting cylinder is to advance if one of two push buttons is


               operated. If the push button is then released, the cylinder is to retract.
