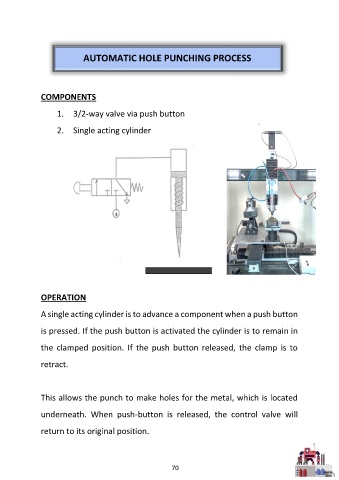

AUTOMATIC HOLE PUNCHING PROCESS
COMPONENTS
1. 3/2-way valve via push button
2. Single acting cylinder
OPERATION
A single acting cylinder is to advance a component when a push button
is pressed. If the push button is activated the cylinder is to remain in
the clamped position. If the push button released, the clamp is to
retract.
This allows the punch to make holes for the metal, which is located
underneath. When push-button is released, the control valve will
return to its original position.
