QUICK EXHAUST VALVE

This component permits a maximum out stroking piston speed by

exhausting the cylinder directly at its port with a great flow capacity,

instead of through the tube and valve. The component is usually

installed directly on the cylinder or as close as possible to the cylinder.

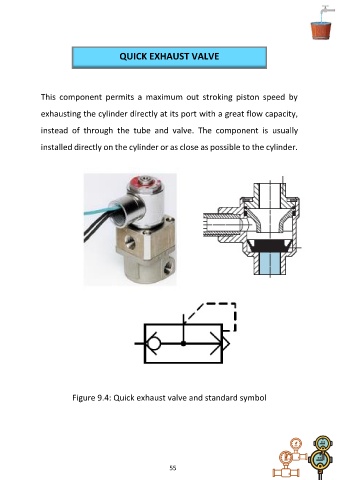

Figure 9.4: Quick exhaust valve and standard symbol
