DUAL PRESSURE VALVE
OUT
IN 1 IN 2

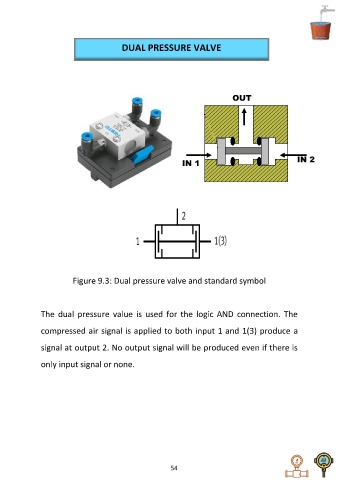

Figure 9.3: Dual pressure valve and standard symbol
The dual pressure value is used for the logic AND connection. The
compressed air signal is applied to both input 1 and 1(3) produce a
signal at output 2. No output signal will be produced even if there is
only input signal or none.
