ESSAY ANSWER
QUESTION 1

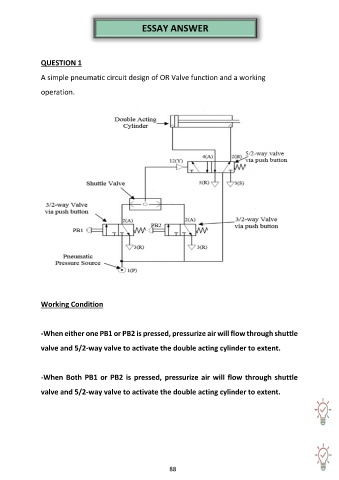

A simple pneumatic circuit design of OR Valve function and a working
operation.
Working Condition
-When either one PB1 or PB2 is pressed, pressurize air will flow through shuttle
valve and 5/2-way valve to activate the double acting cylinder to extent.
-When Both PB1 or PB2 is pressed, pressurize air will flow through shuttle
valve and 5/2-way valve to activate the double acting cylinder to extent.
