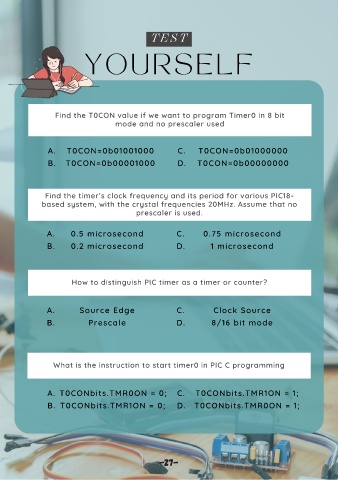

TEST

Y O U R S E L F

Find the T0CON value if we want to program Timer0 in 8 bit
mode and no prescaler used

A. T0CON=0b01001000 C. T0CON=0b01000000

B. T0CON=0b00001000 D. T0CON=0b00000000

Find the timer’s clock frequency and its period for various PIC18-
based system, with the crystal frequencies 20MHz. Assume that no
prescaler is used.

A. 0.5 microsecond C. 0.75 microsecond

B. 0.2 microsecond D. 1 microsecond

How to distinguish PIC timer as a timer or counter?

A. Source Edge C. Clock Source

B. Prescale D. 8/16 bit mode

What is the instruction to start timer0 in PIC C programming

A. T0CONbits.TMR0ON = 0; C. T0CONbits.TMR1ON = 1;

B. T0CONbits.TMR1ON = 0; D. T0CONbits.TMR0ON = 1;

-27-
