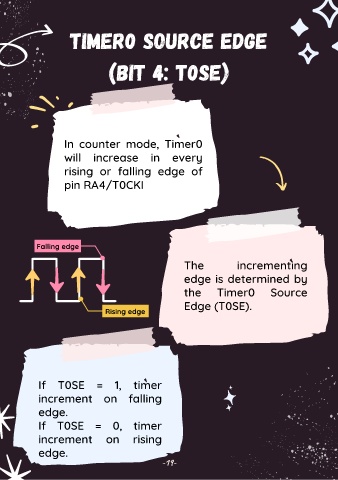

Timer0 Source Edge

(BIT 4: T0SE)

In counter mode, Timer0

will increase in every

rising or falling edge of

pin RA4/T0CKI

Falling edge

The incrementing

edge is determined by

the Timer0 Source

Edge (T0SE).
Rising edge

If T0SE = 1, timer

increment on falling

edge.

If T0SE = 0, timer

increment on rising

edge.
