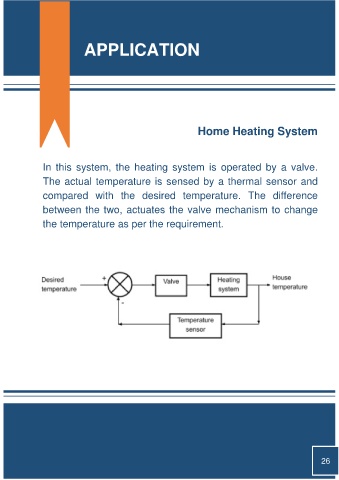

APPLICATION
Home Heating System
In this system, the heating system is operated by a valve.
The actual temperature is sensed by a thermal sensor and
compared with the desired temperature. The difference
between the two, actuates the valve mechanism to change
the temperature as per the requirement.
