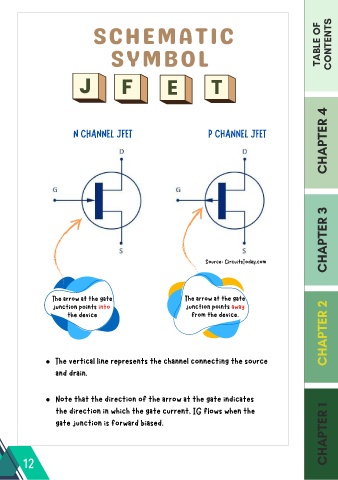

SCHEMATIC TABLE OF CONTENTS
SYMBOL
CHAPTER 4
N CHANNEL JFET P CHANNEL JFET
CHAPTER 3
Source: CircuitsToday.com
The arrow at the gate The arrow at the gate
CHAPTER 2
junction points into junction points away
the device from the device.
The vertical line represents the channel connecting the source
and drain.
Note that the direction of the arrow at the gate indicates
the direction in which the gate current, IG flows when the
gate junction is forward biased. CHAPTER 1
