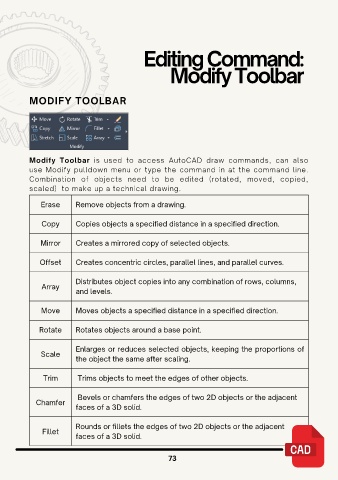

Editing Command:

Modify Toolbar

MODIFY TOOLBAR

Modify Toolbar is used to access AutoCAD draw commands, can also
use Modify pulldown menu or type the command in at the command line.

Combination of objects need to be edited (rotated, moved, copied,
scaled) to make up a technical drawing.

Erase Remove objects from a drawing.

Copy Copies objects a specified distance in a specified direction.

Mirror Creates a mirrored copy of selected objects.

Offset Creates concentric circles, parallel lines, and parallel curves.

Distributes object copies into any combination of rows, columns,
Array
and levels.

Move Moves objects a specified distance in a specified direction.

Rotate Rotates objects around a base point.

Enlarges or reduces selected objects, keeping the proportions of
Scale
the object the same after scaling.

Trim Trims objects to meet the edges of other objects.

Bevels or chamfers the edges of two 2D objects or the adjacent
Chamfer
faces of a 3D solid.

Rounds or fillets the edges of two 2D objects or the adjacent
Fillet
faces of a 3D solid.

73
