AutoCAD Application

Drawing Limits

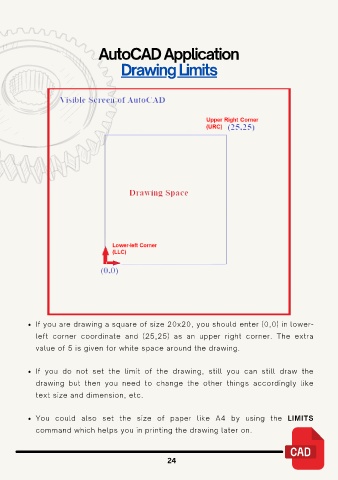

If you are drawing a square of size 20x20, you should enter (0,0) in lower-

left corner coordinate and (25,25) as an upper right corner. The extra

value of 5 is given for white space around the drawing.

If you do not set the limit of the drawing, still you can still draw the
drawing but then you need to change the other things accordingly like

text size and dimension, etc.

You could also set the size of paper like A4 by using the LIMITS

command which helps you in printing the drawing later on.
