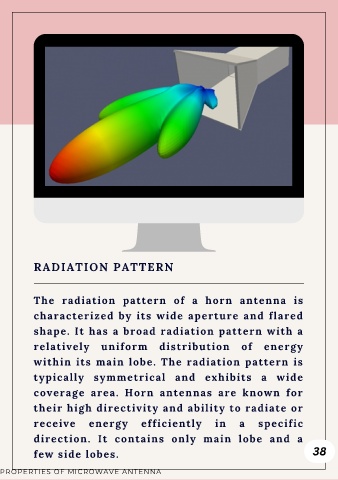

RADIATION PATTERN






             The  radiation  pattern  of  a  horn  antenna  is

             characterized  by  its  wide  aperture  and  flared

             shape. It has a broad radiation pattern with a


             relatively  uniform  distribution  of  energy

             within  its  main  lobe.  The  radiation  pattern  is

             typically  symmetrical  and  exhibits  a  wide


             coverage  area.  Horn  antennas  are  known  for

             their high directivity and ability to radiate or

             receive  energy  efficiently  in  a  specific


             direction.  It  contains  only  main  lobe  and  a

             few side lobes.                                                                                       38
